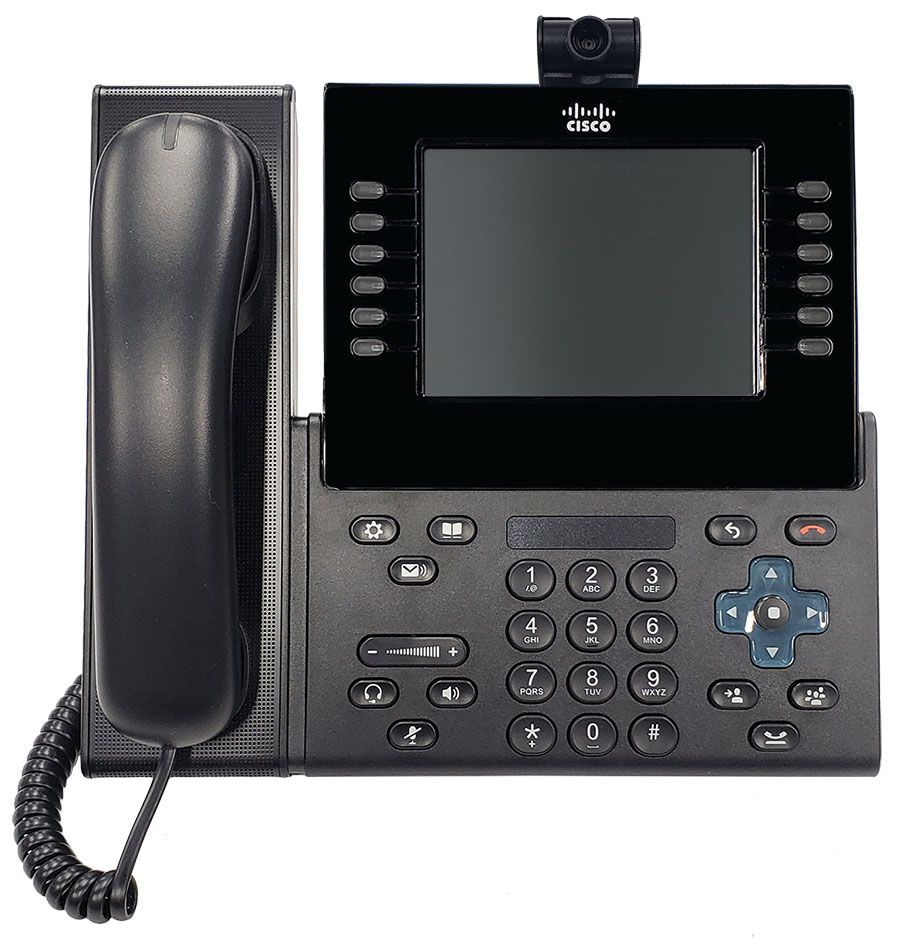

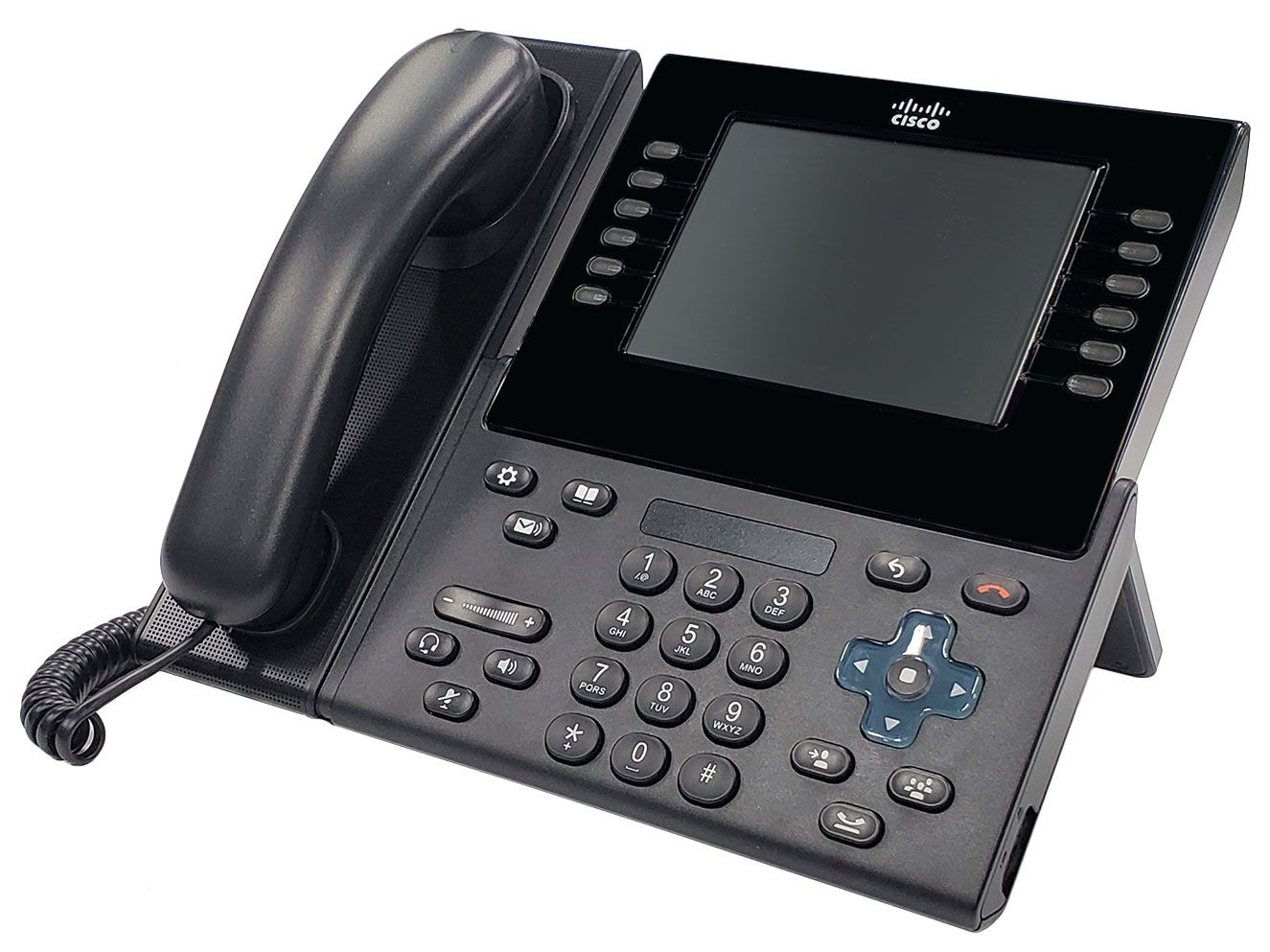

| The Cisco 9971 IP Phone is an executive class collaboration endpoint that provides high-quality voice and video. It features a USB video camera, Gigabit Ethernet, wideband audio, color touchscreen display, built-in Wi-Fi connectivity, and Bluetooth support.
Includes Cisco Unified Video Camera. Cisco 9971 Features
- Large backlit, high-resolution 640 x 480 pixel, adjustable color display
- 6 feature buttons with status LEDs
- 6 call session buttons with status LEDs
- 4-way navigation cluster
- RJ9 headset port for wired analog headsets
- 2 USB ports for use with accessories such as the Cisco Unified IP Camera and wired and wireless headsets
- Bluetooth 2.0 headset profiles add freedom at the desk
- High-definition voice (HD voice) provides greater clarity in communications
- Supports up to 3 Cisco Unified IP Color Key Expansion Modules
- XML applications transform business processes and enhance user experience.
- Dual port Gigabit Ethernet switch accomodates collocated PC
- Built-in Wi-Fi support (802.11a/b/g)
- Powered via 802.3af Power over Ethernet, PoE injector, or Cisco Power Cube 4 (sold separately; see drop down option above)
- Supports SIP protocol for signaling; H.264 for video

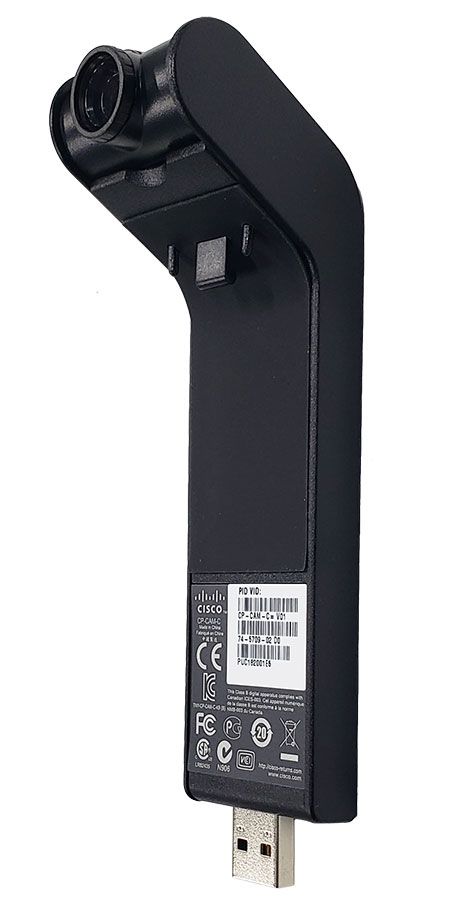

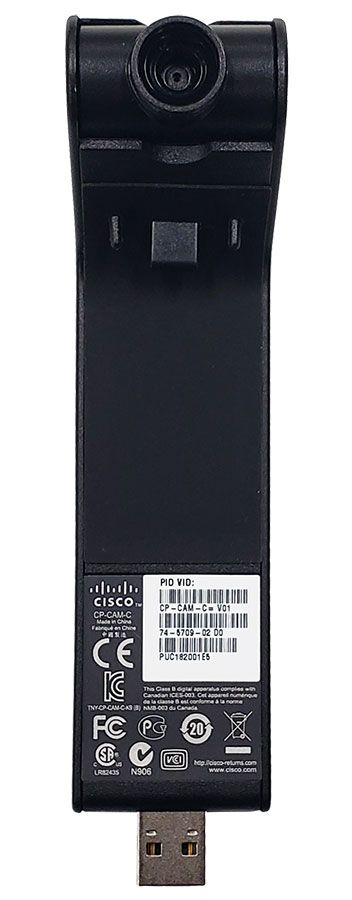

Cisco Unified Video Camera Features
- Interactive, high-performance H.264 business video elevates and personalizes communications
- Integrated, compact ergonomic design and auto-configuration option delivers visually pleasing and "plug-n-play" connection into phone
- USB port Delivers high performance video communications up to 30 frames-per-second (CIF standard) and up to 24 frames-per-second (VGA)
- Multi-party video communications with up to six parties presented concurrently on endpoint display (3 columns by 2 rows)
- Full screen and picture-in-picture options offer an enhanced and flexible user experience
- Digital software controls for zoom deliering increased video image control
- Video mute to stop sending video at the local end adds convenience
Compatibility
- Supported in Cisco Unified Communications Manager 7.1(3a)SU1 or later
- Survivable Remote Site Telephony (SRST) 4.3 or later
- CME 8.6 or later
Includes
- Cisco 9971
- Cisco Unified Video Camera

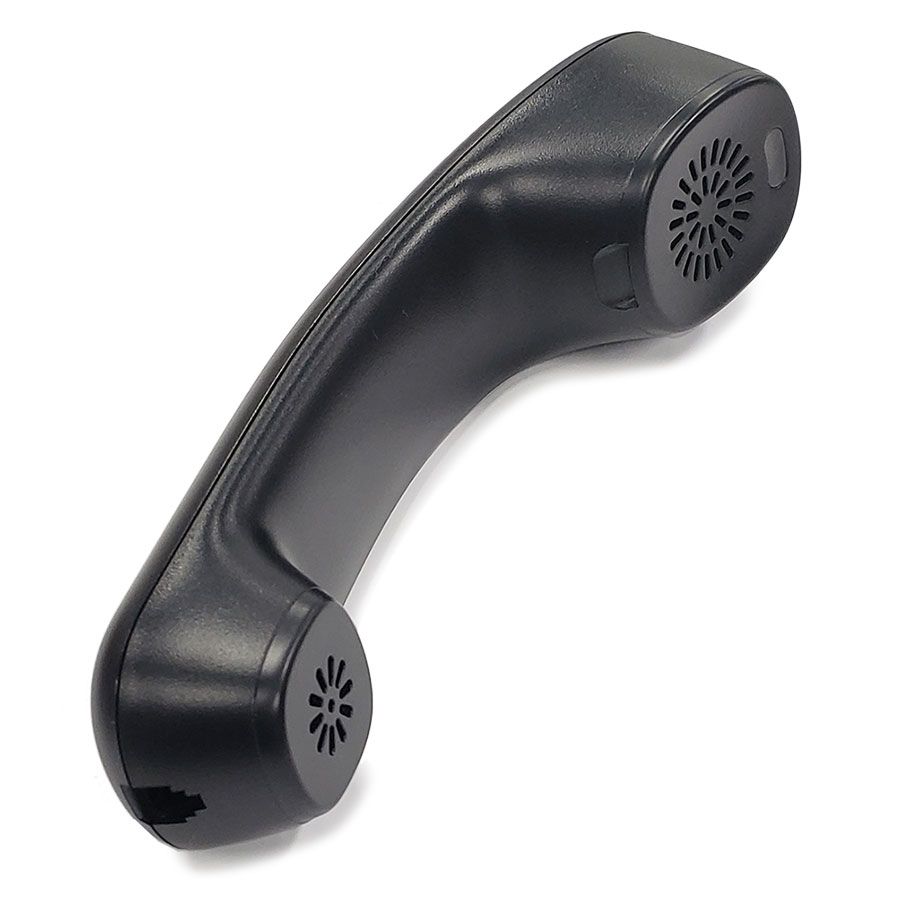

- Handset and handset cord

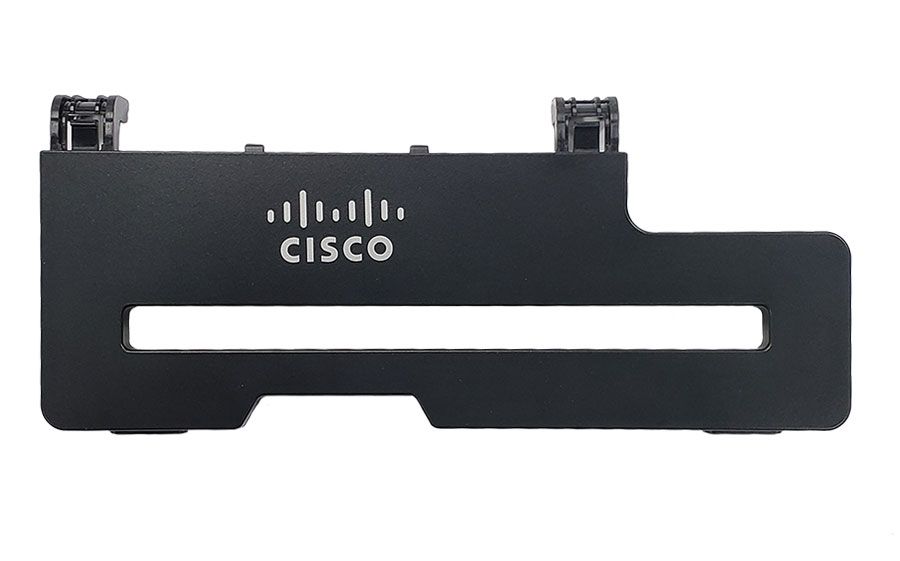

- Desk base

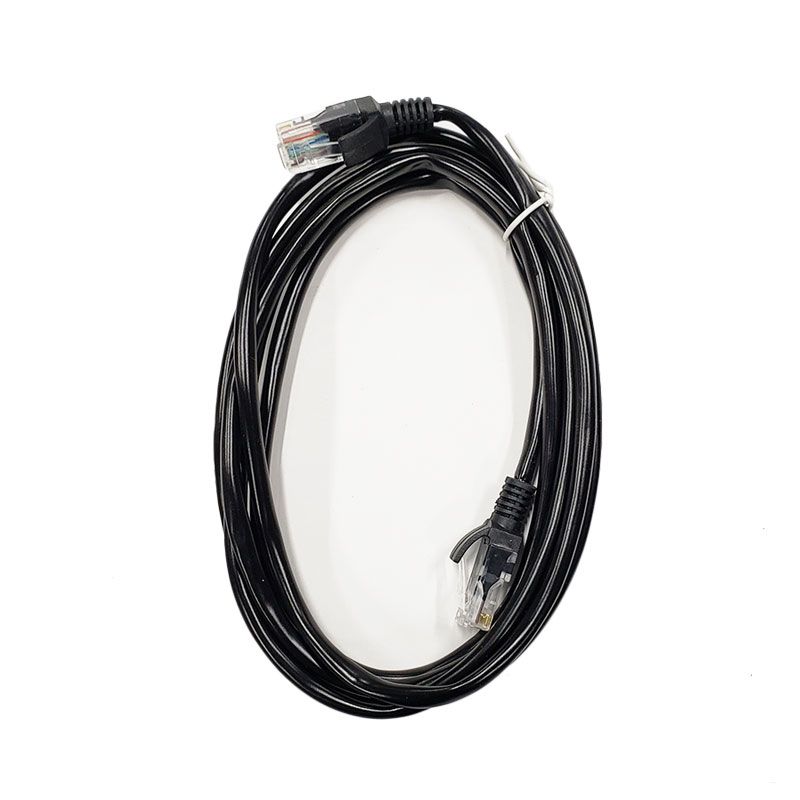

- Network cable
