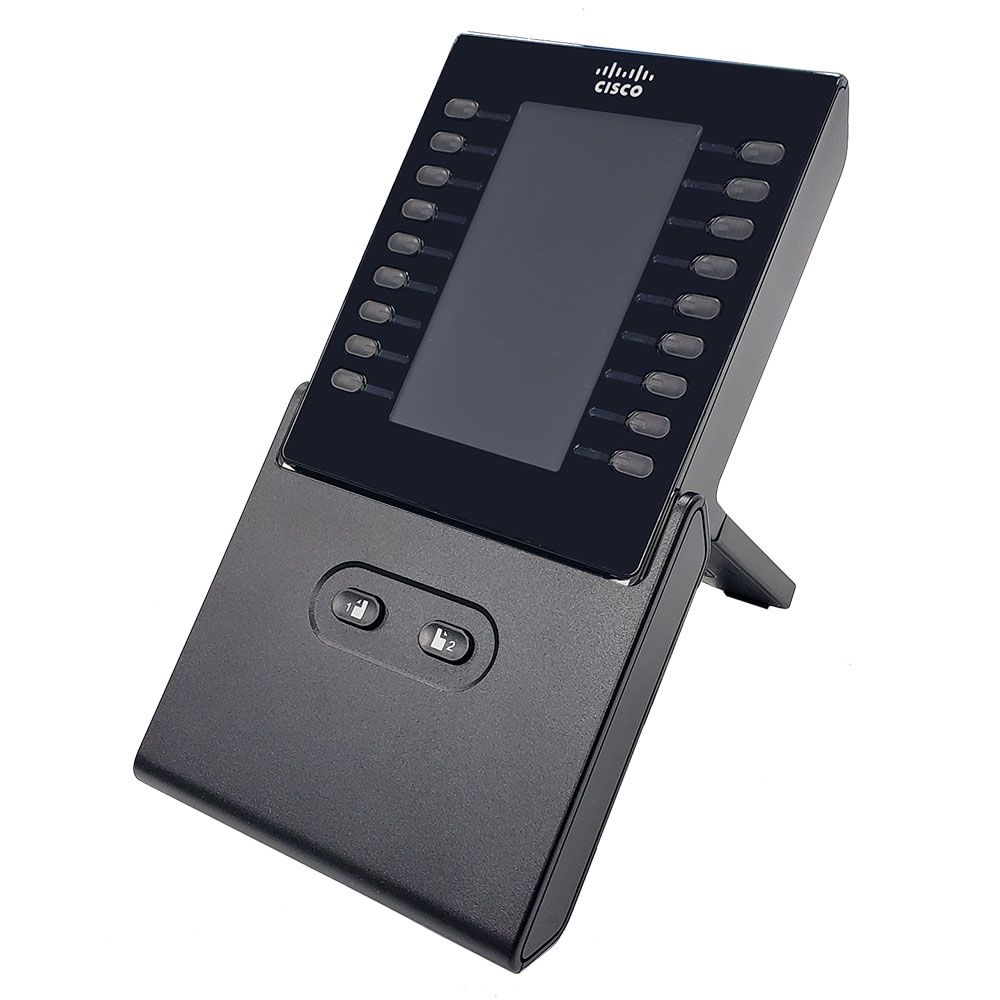

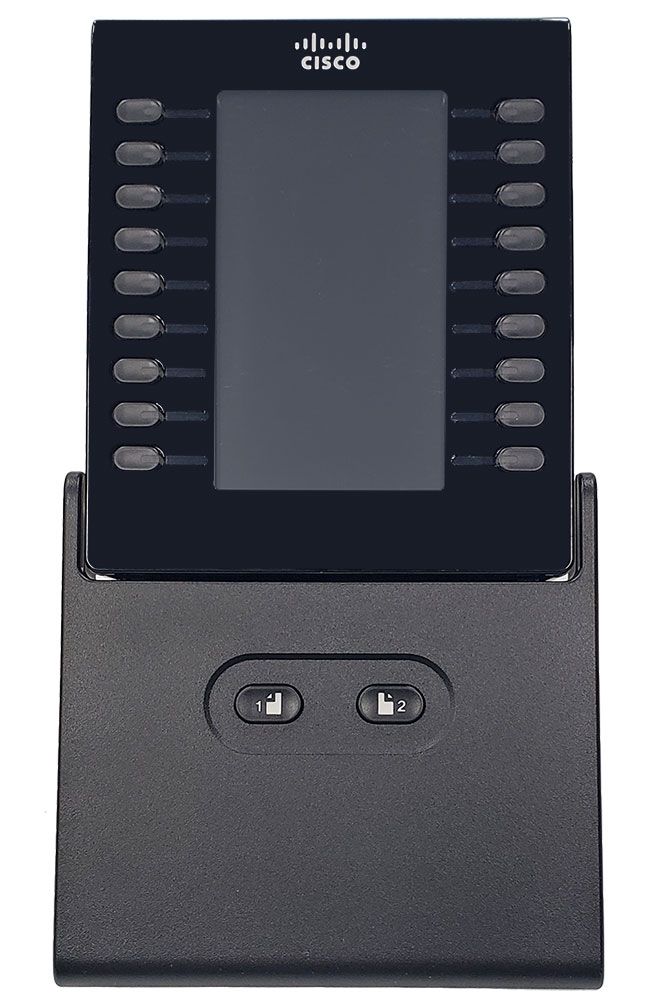

| The Cisco Unified IP Color Key Expansion Module delivers affordable and scalable expansion of line/feature key appearances on select Cisco Unified IP Phone 9900 Series and Cisco Unified IP Phone 8900 Series telephones.
Cisco IP Color Key Expansion Module Features
- 18 physical, programmable, tri-color illuminated LED line/ feature keys per module
- Second page key provides access to eighteen additional programmable keys (for 36 keys total per module)
- Tri-color LED illuminated line/feature keys provide at-a-glance call status indication
- One-, two-, and three-module configurations expand scalability and provide investment protection
- Graphical, backlit, high-resolution color display makes viewing easy
- Seamlessly integrates with IP Phone 9971, IP Phone 9951, and IP Phone 8961 endpoints
Power Requirements
- Can be powered by a phone using 802.3at Power over Ethernet (30W)
- If the phone is using 802.3af Power over Ethernet (15.4W), then a power cube is required
- If the phone is being powered by a power cube, then no additional power is required
Compatibility
- Cisco 9971 - Can add up to 3 expansion modules
- Cisco 9951 - Can add up to 2 expansion modules
- Ciso 8961 - Can add 1 expansion module
- Supported on Cisco Unified Communications Manager and Cisco Unified Communications Manager Business Edition Release 7.1(3) and later
Includes

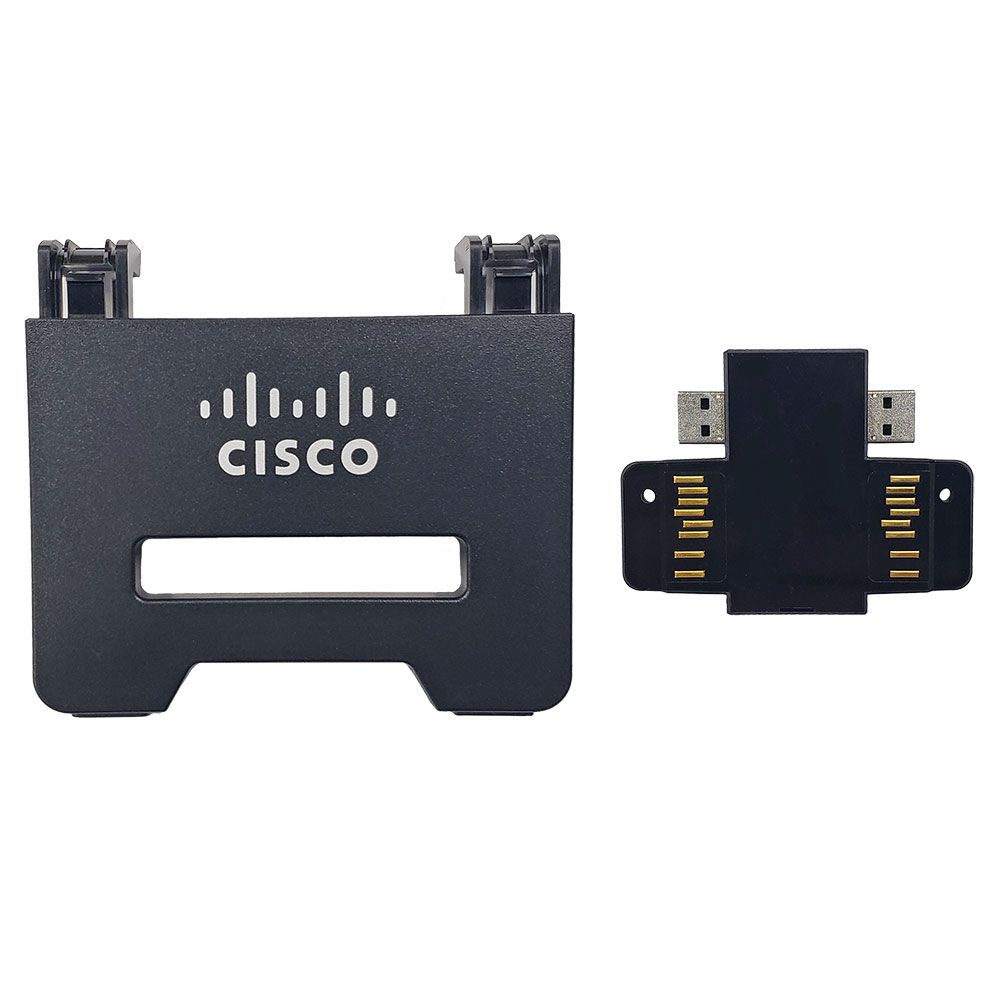

- Cisco Unified IP Color KEM
- USB expansion connector
- Desk stand
