The ShoreTel ShoreGear 90v is a voice switch that supports up to 90 IP phones, 90 voicemail mailboxes, and up to a maximum of 12 analog ports (eight loop start trunks, and four analog extension ports). It supports integrated voicemail capability with 56 hours of voicemail storage. The ShoreTel ShoreGear 90v supports ShoreTel IP phones, softphones, and SIP devices.

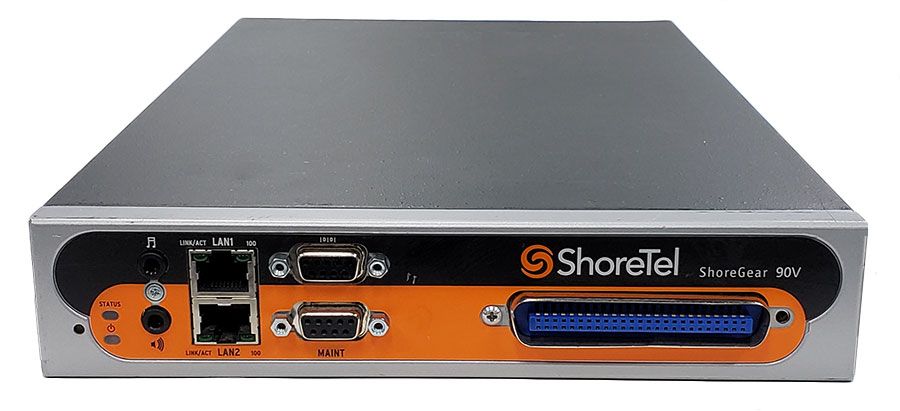

ShoreGear 90V Features
- 2 RJ-45 local area network (LAN) connectors
- 1 RJ-21X port for punchdown block, patch panel, or 12-port harmonica connector
- Up to 90 IP phones
- 90 voicemail mailboxes with a total of 56 hours of voicemail storage
- 8 loop start trunks (FXO)
- 4 telephone ports (FXS)
- 4 DID trunks (US and Canada)
- Up to 90 SIP trunks without media proxy
- Up to 12 SIP trunks with media proxy
- 12 Make Me conference ports
- 1 DB-9, RS-232C maintenance port for serial communications
- 1 3.5 mm stereo input for connecting a music-on-hold source
- 1 3.5 mm stereo output for connecting to a overhead paging system or night bell
- Manufacturer Part No. 600-1060-23
