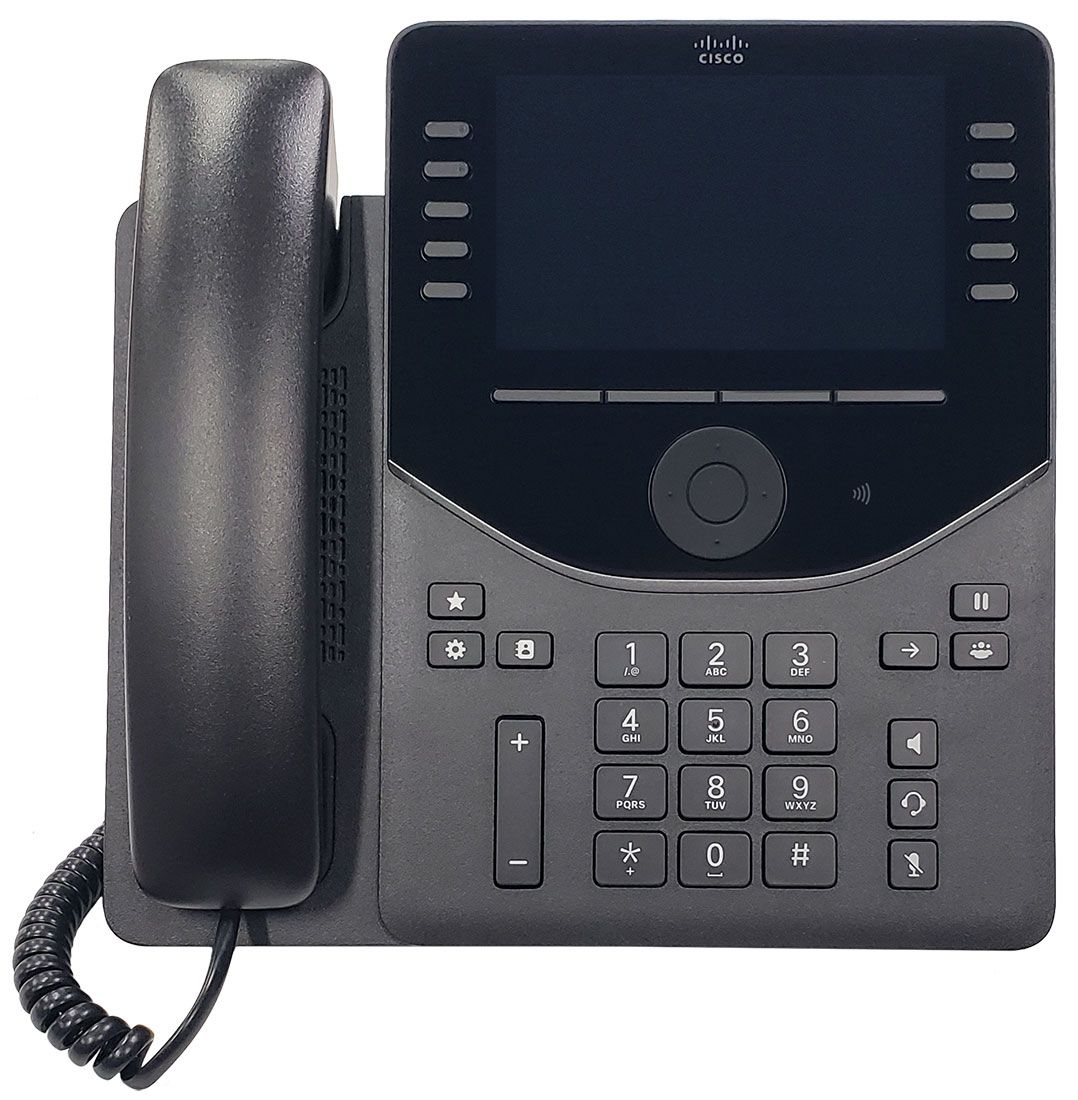

Cisco 9861 IP Phone (DP-9861-K9=)

The Cisco 9861 IP Phone features a 5 inch color backlit display, Gigabit ethernet, dual band Wi-Fi, 10 programmable line keys, top and front LED status indicators, built-in Bluetooth, and dual USB ports. One platform with PhoneOS provides support for Cisco Unified Communication Manager (CUCM), Webex Calling, Broadworks, and 3rd Party Cloud Calling (3PCC/OpenSIP) - all in one device.

• 5 inch color backlit LCD display (800 x 480 pixels)
• 10 programmable line keys with tri-color LED indicators
• Fixed feature keys include action, favorite, hold/resume, transfer, conference, application, calendar, directory, speakerphone, headset, mute, volume control
• 4 way navigation cluster with select key
• Top 360 LED and front arc LED indicates states of call, message, and the phone
• One USB-A port for connecting USB headsets or Bluetooth headset dongle
• One USB-C port for connecting USB headsets or Bluetooth headset dongle
• USB port can also be used to charge a mobile device when the 9851 is powered via AC outlet
• 2-port 10/100/1000BASE-T Gigabit Ethernet switch
• Built-in Bluetooth 5.2
• Built-in dual band 2.4GHz/5GHz Wi-Fi (802.11a/b/g/n/ac)
• Supports up to three Cisco 9800 KEMs to add additional programmable buttons
• One platform with PhoneOS provides support for all platforms - Cisco Unified Communications Manager (CUCM), Webex Calling, Broadworks, or 3rd Party Cloud Calling (3PCC/OpenSIP)
• Built-in Action button can be configured for any use case (e.g. emergency alerts, security, IT, front desk, broadcast/paging, and more)
• One Button to Push (OBTP) allows you to quickly join any meeting from the device's screen when registered to WebEx calling
• Equipped with government grade security so communications are encypted end-to-end
• Powered via Power over Ethernet (802.3af), optional PoE injector, or optional AC adapter (sold separately; see drop down option above)
• Wall mountable with optional wall mount kit

• Cisco Unified Communication Manager (CUCM) 12.5 or above (not all CUCM versions support Cisco Desk Phone 9800 Series natively, dev pack and device enabler file (QED) might be required)
• Cisco Webex Calling
• Cisco BroadWorks
• Asterisk
• Can be used with a variety of SIP compatible hosted service providers and SIP compatible IP PBX systems
• Check with your hosted provider or IP PBX documentation to confirm system compatibility

• Cisco 9861

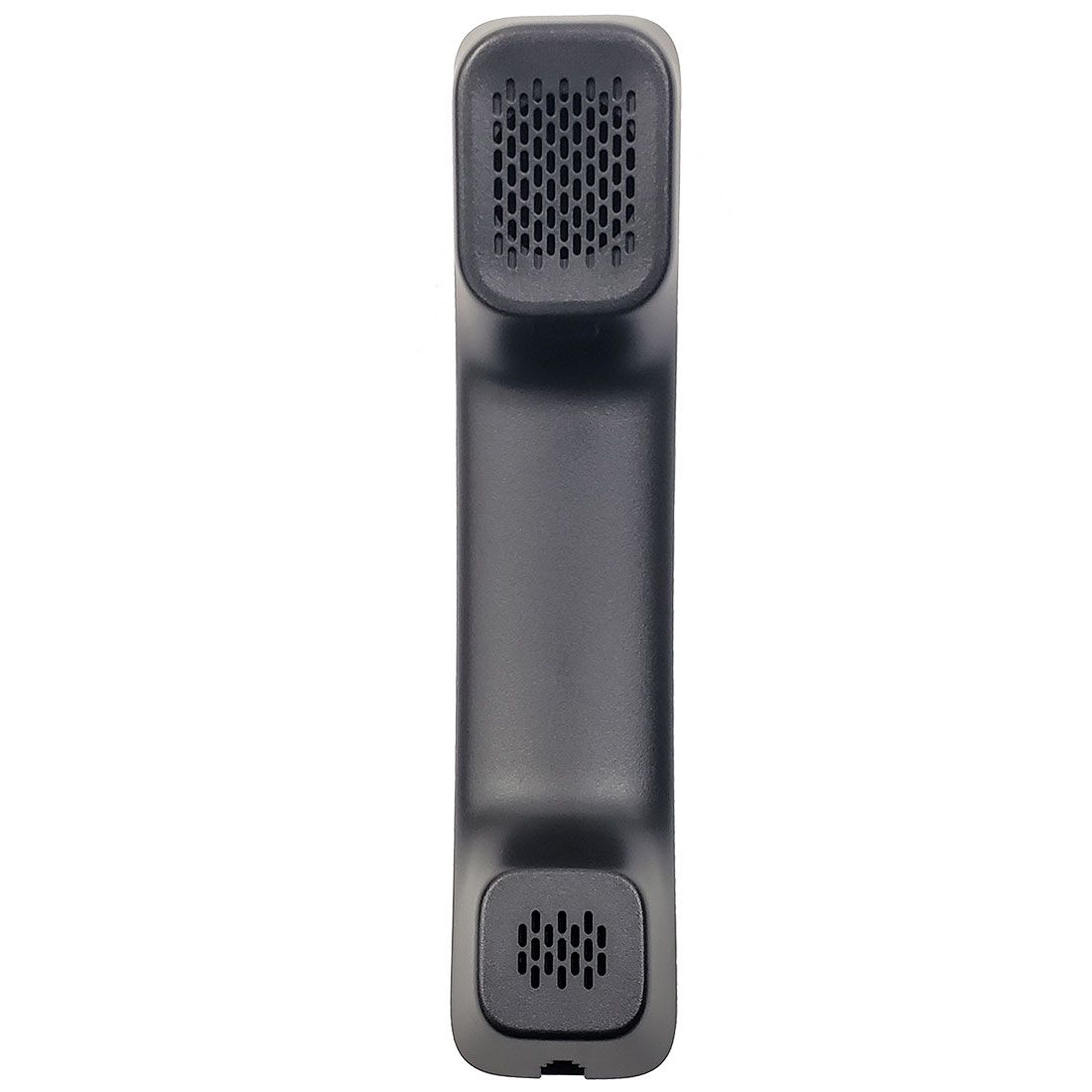

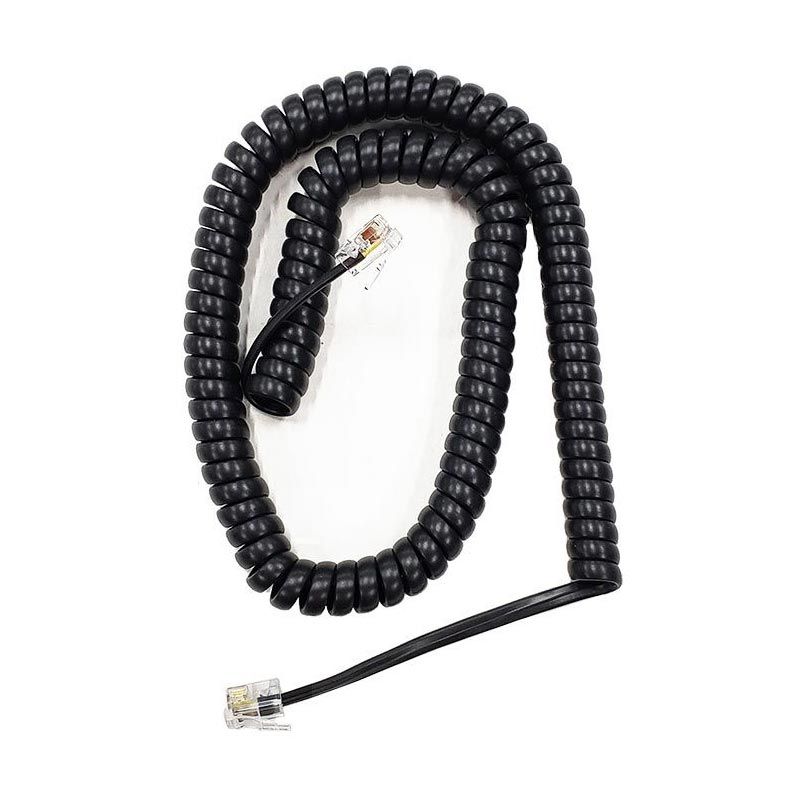

• Handset and handset cord

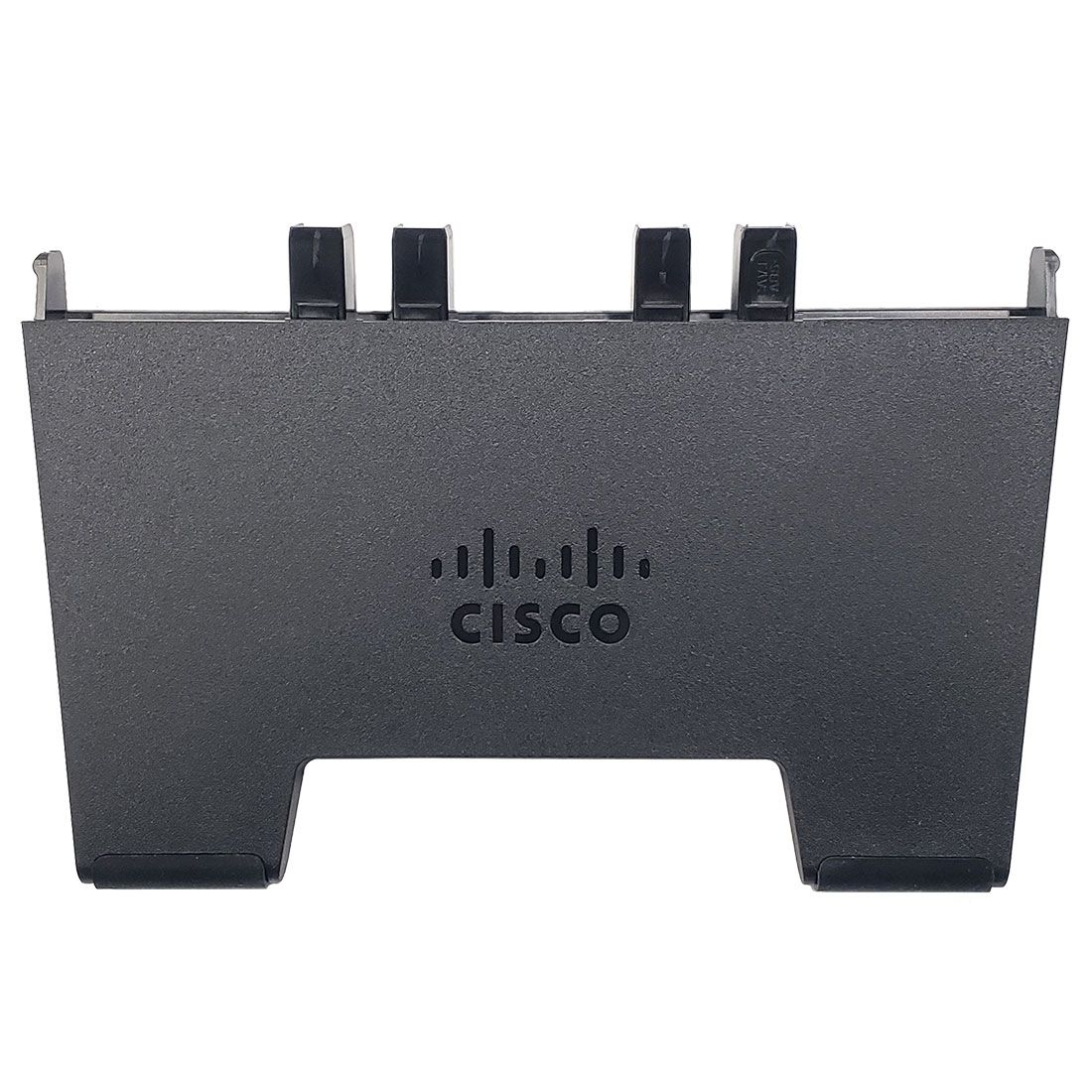

• Desk stand

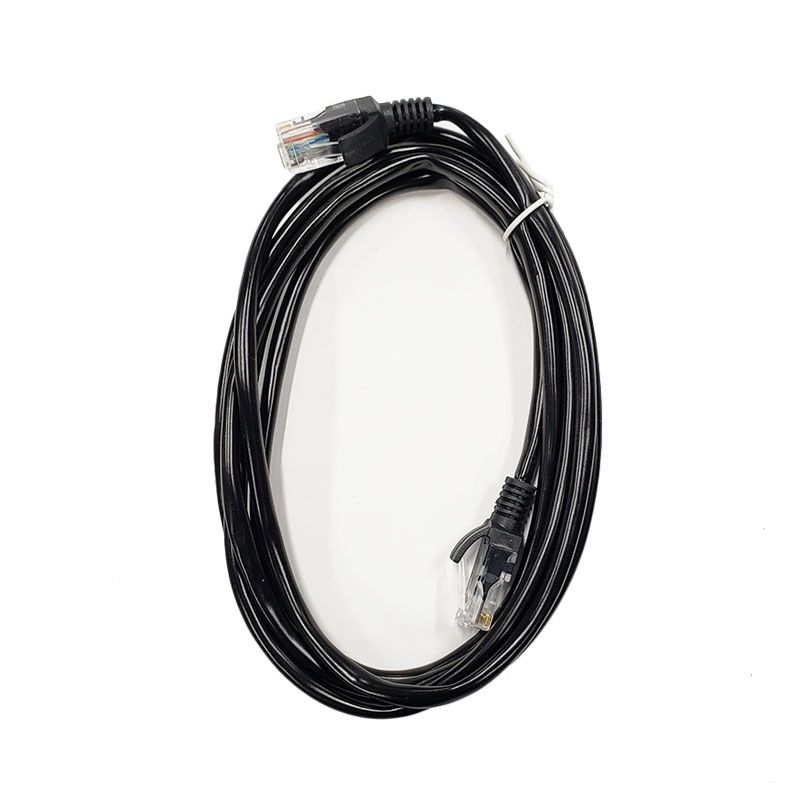

• Network cable

• Cisco 9800 Series Datasheet
