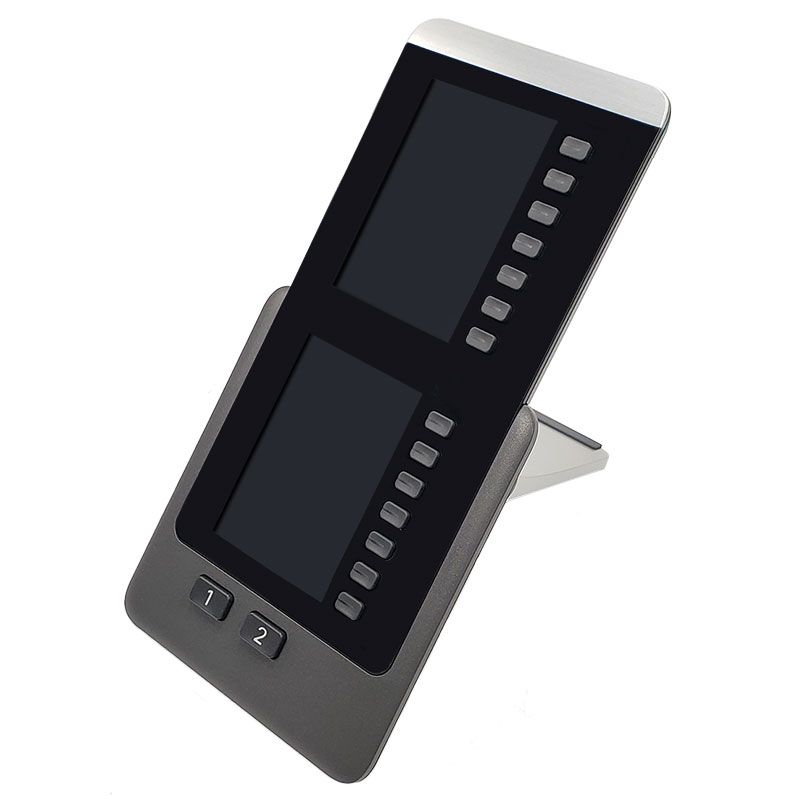

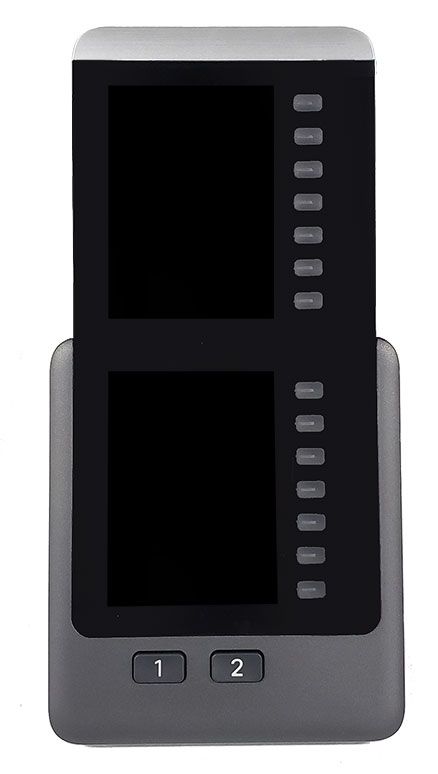

| The Cisco 8851/8861 Key Expansion Module adds 14 programmable buttons to your Cisco 8851/8861 IP phone. Two page buttons allow you to take advantage of a total of 28 additional buttons. The large LCD display provides quick and easy identification of associated buttons.
Cisco 8851/8861 Key Expansion Module Features
- Provides additional keys for directory numbers, speed dials, or programmable feature keys
- Dual 3.5 inch graphical (TFT) color displays (480 x 272 pixels)
- 14 programmable buttons with 2 page keys to access 28 buttons total
- LEDs on buttons indicate feature status
Compatibility
- Compatible with 8851 and 8861 IP phones running firmware 12.0.1.11 and later
- Compatible with Cisco Unified Communications Manager Version 10.5(2) and later; and Cisco Unified Survivable Remote Site Telephony (SRST) 11.0 (with Cisco IOS Software Release 15.3(3)M) and later
Power Requirements
- 8851 + (1) KEM - 802.3af PoE, 802.3at PoE+, or Cisco Power Cube 4
- 8851 + (2) KEM - Cisco Power Cube 4
- 8861 + (1) KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8861 + (2) KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8861 + (3) KEM - 802.3at PoE+ or Cisco Power Cube 4
- Please note the power differences between 802.3af PoE (15.4W), 802.3at PoE+ (30W), and the Cisco Power Cube 4 (44W)
Includes
- Cisco Key Expansion Module (AKEM)

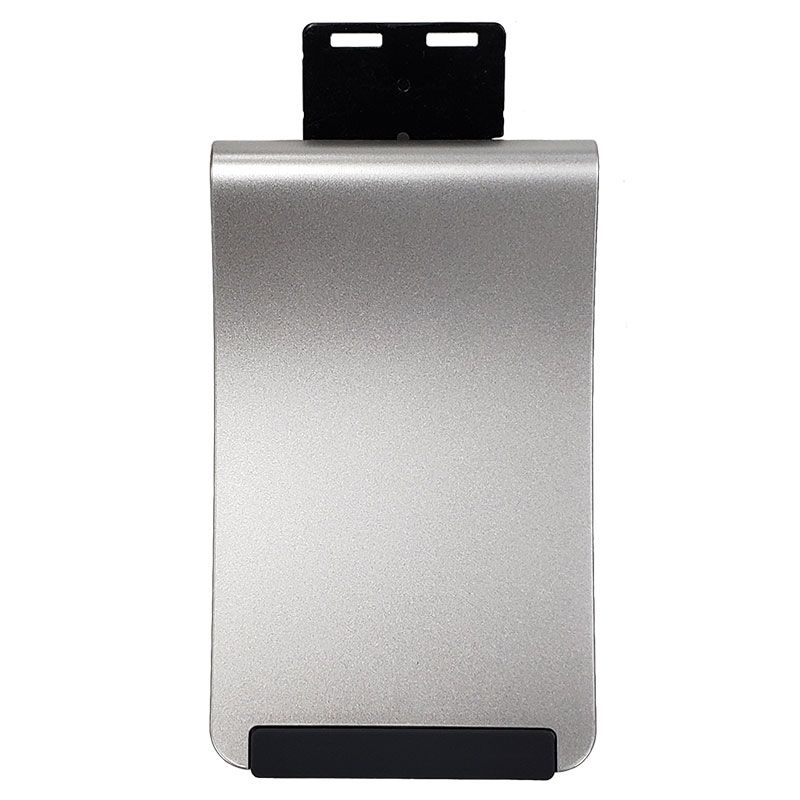

- Desk stand

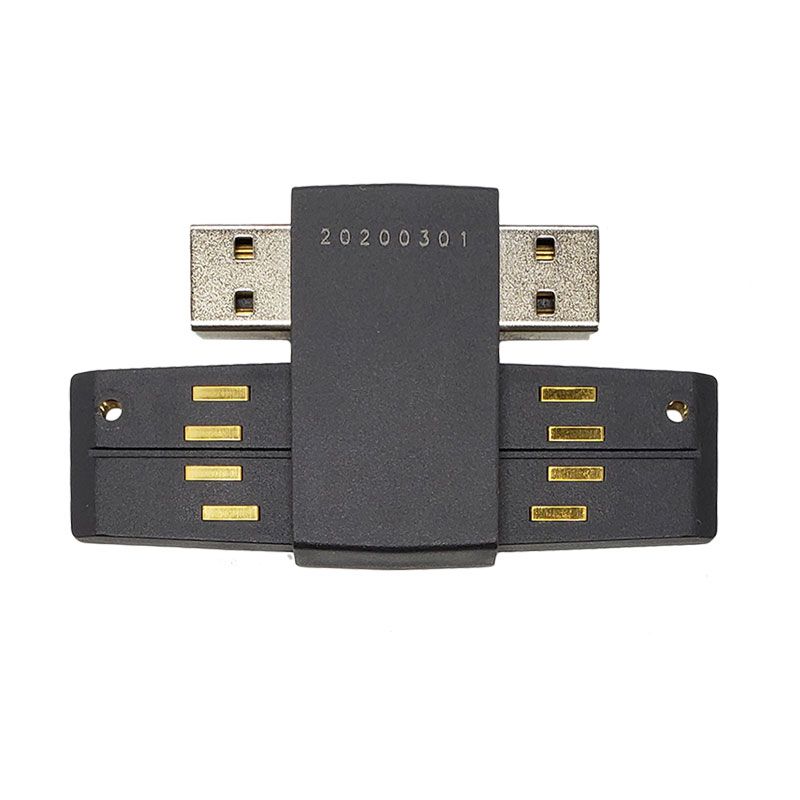

- Module connector
