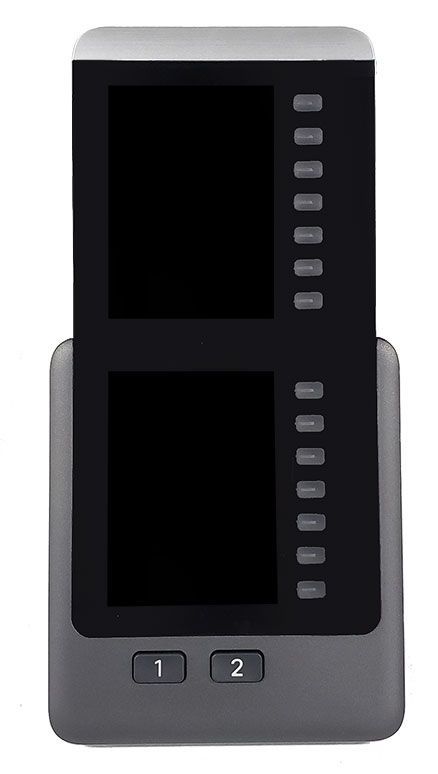

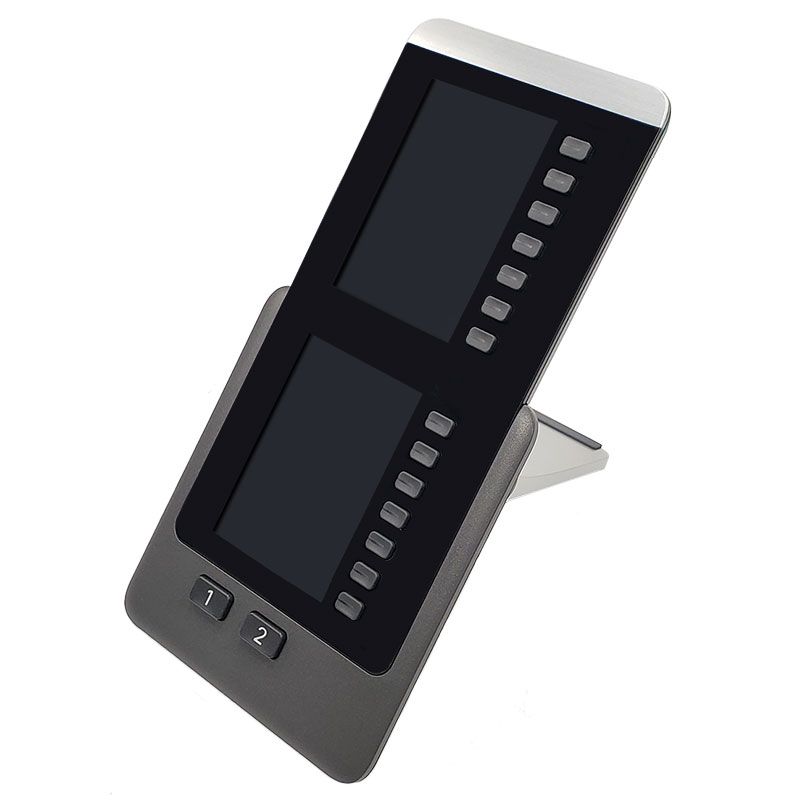

Cisco 8851/8861 Key Expansion Module with Multiplatform Firmware (CP-8800-A-KEM-3PC=)

The Cisco 8851/8861 Key Expansion Module with Multiplatform Firmware supports third-party call control (SIP) on supported open SIP, third-party UCaaS voice and video platforms. It uses exclusive multiplatform (MPP) firmware and does not work with Cisco call control. It adds 14 programmable buttons to your Cisco 8851/8861 IP phone equipped with Multiplatform firmware. Two page buttons allow you to take advantage of a total of 28 additional buttons. The large LCD display provides quick and easy identification of associated buttons.

• Provides additional keys for directory numbers, speed dials, or programmable feature keys
• Dual 3.5 inch graphical (TFT) color displays (480 x 272 pixels)
• 14 programmable buttons with 2 page keys to access 28 buttons total
• LEDs on buttons indicate feature status

• Compatible with 8851 and 8861 IP phones with Multiplatform (MPP) firmware
• Requires Multiplatform firmware version 11.2.3 or later

• 8851 + (1) KEM - 802.3af PoE, 802.3at PoE+, or Cisco Power Cube 4
• 8851 + (2) KEM - Cisco Power Cube 4
• 8861 + (1) KEM - 802.3at PoE+ or Cisco Power Cube 4
• 8861 + (2) KEM - 802.3at PoE+ or Cisco Power Cube 4
• 8861 + (3) KEM - 802.3at PoE+ or Cisco Power Cube 4
• Please note the power differences between 802.3af PoE (15.4W), 802.3at PoE+ (30W), and the Cisco Power Cube 4 (44W)

• Cisco 8800 Key Expansion Module 3PCC (AKEM)

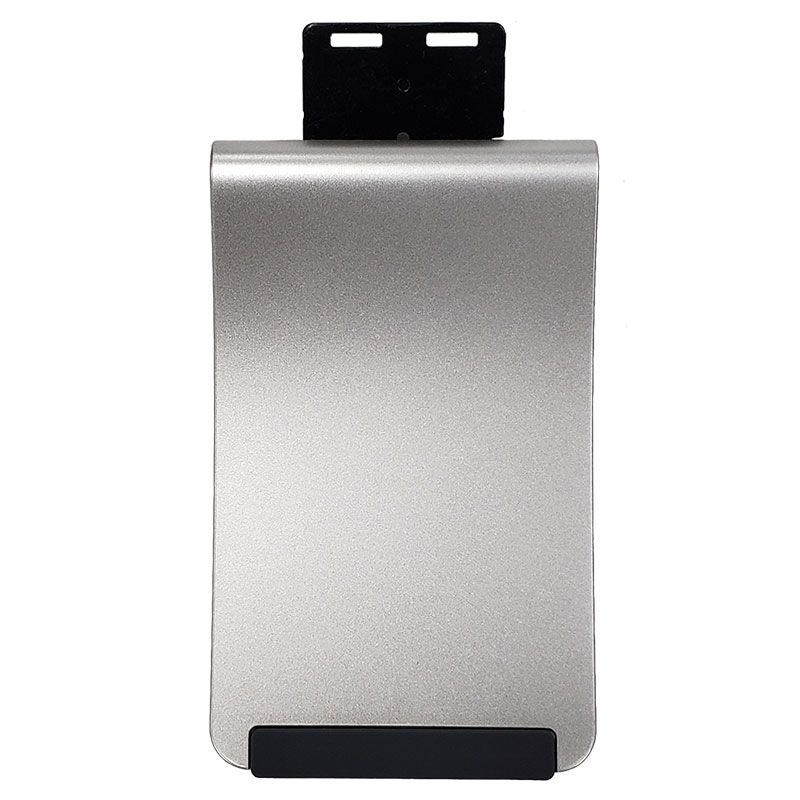

• Desk stand

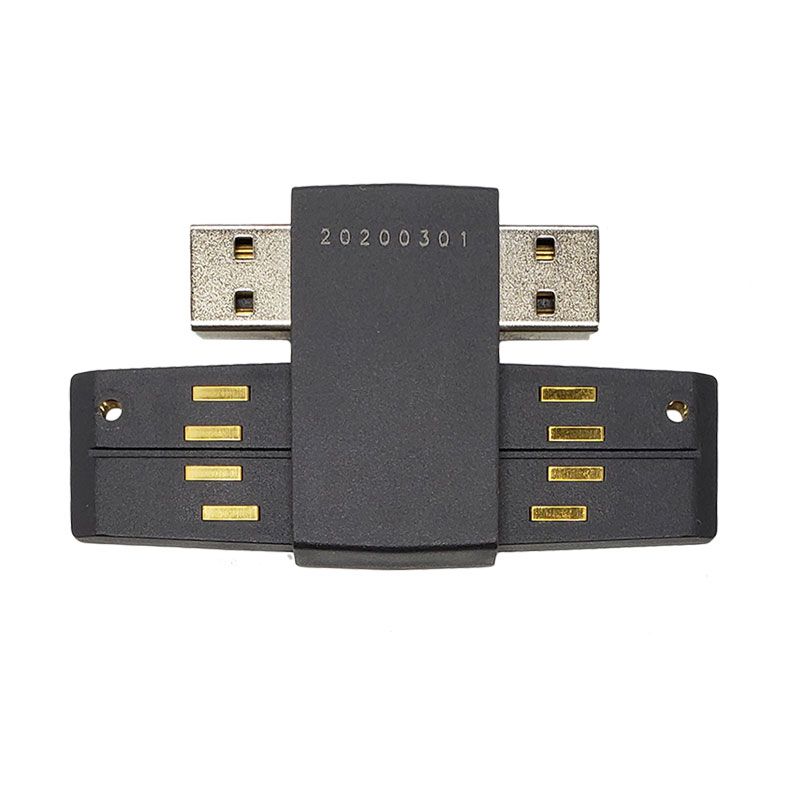

• Module connector

• Cisco 8800 Series Multiplatform Datasheet
• Cisco 8800 Series Multiplatform Quick Start Guide
