| The Cisco 8800 Key Expansion Module with Multiplatform firmware extends the capabilities of Cisco IP Phone 8851, 8861, and 8865 Multiplatform (3PCC, MPP) models with additional buttons and a color LCD display. It provides 2 pages of 18 additional buttons (36 total), each with red/green illuminated indicators for line status.
Cisco 8800 Key Expansion Module 3PCC Features
- 4.3 inch, 16-bit color, backlit 480x272 pixel display
- Expands your Cisco 8800 series Multiplatform IP phone with 18 additional physical keys
- Supports two pages of 18 keys for a total of 36
- Keys are illuminated with red/green colors and patterned flashing for line status
Compatibility
- Compatible with Cisco Multiplatform (MPP, 3PCC) 8851, 8861, and 8865 IP phones
- Up to 2 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8851 IP phone
- Up to 3 Cisco 8800 Key Expansion Modules can be connected to the Cisco 8861 and 8865 IP phone
Power Requirements
- 8851 + (1) KEM - 802.3af PoE or 802.3at PoE+ (requires Cisco PoE switch with CDP turned on), or Cisco Power Cube 4
- 8851 + (2) KEM - Cisco Power Cube 4
- 8861 + (1) KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8861 + (2) KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8861 + (3) KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8865 + (1) 8865 KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8865 + (2) 8865 KEM - 802.3at PoE+ or Cisco Power Cube 4
- 8865 + (3) 8865 KEM - 802.3at PoE+ or Cisco Power Cube 4
- Please note the power differences between 802.3af PoE (15.4W), 802.3at PoE+ (30W), and the Cisco Power Cube 4 (44W)
Includes
- Cisco Key Expansion Module Multiplatform (BEKEM-3PCC)

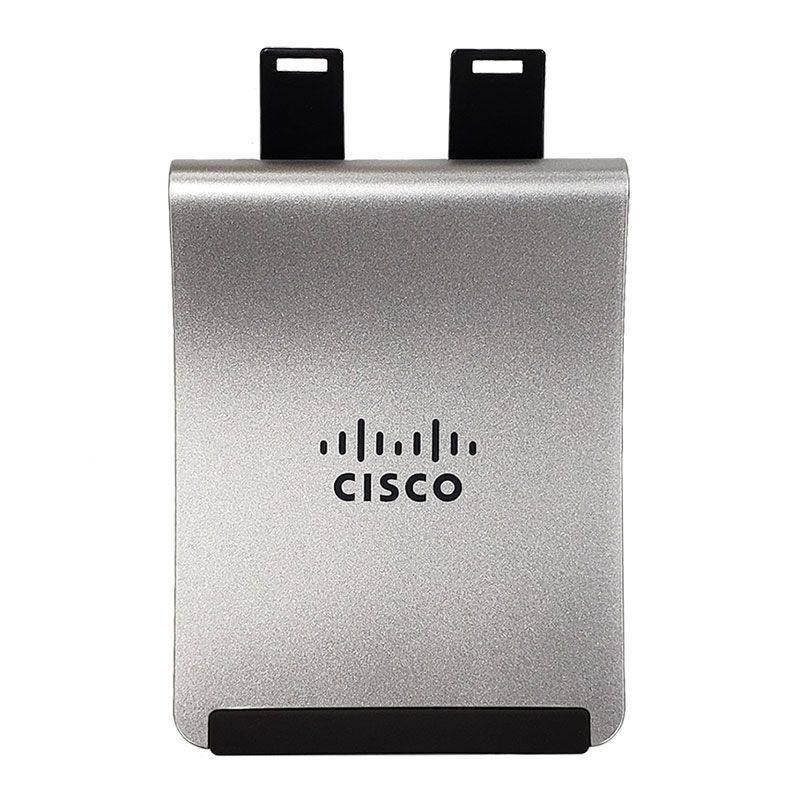

- Desk stand

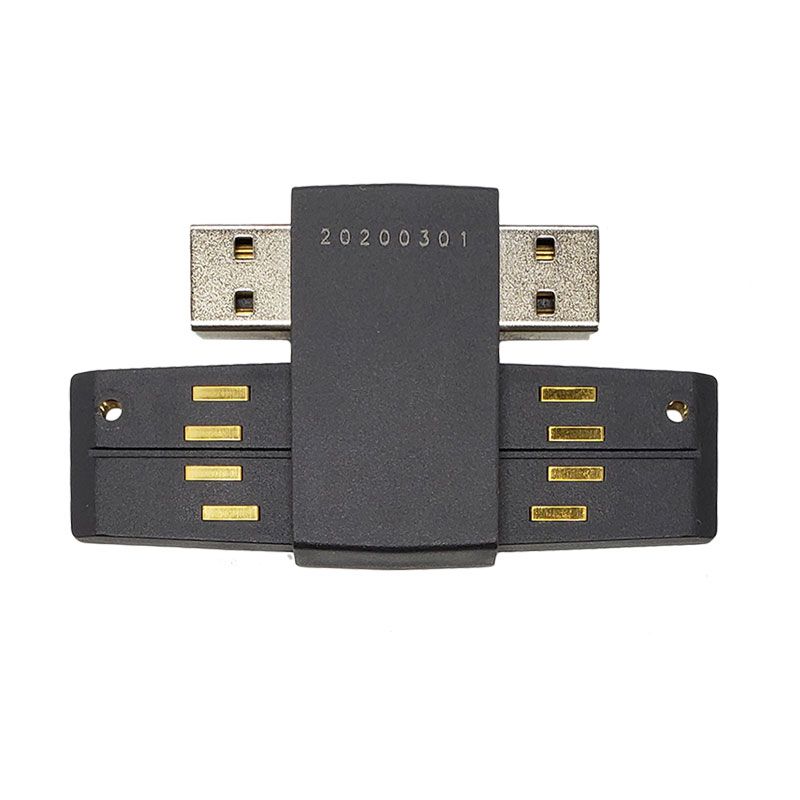

- Module connector
