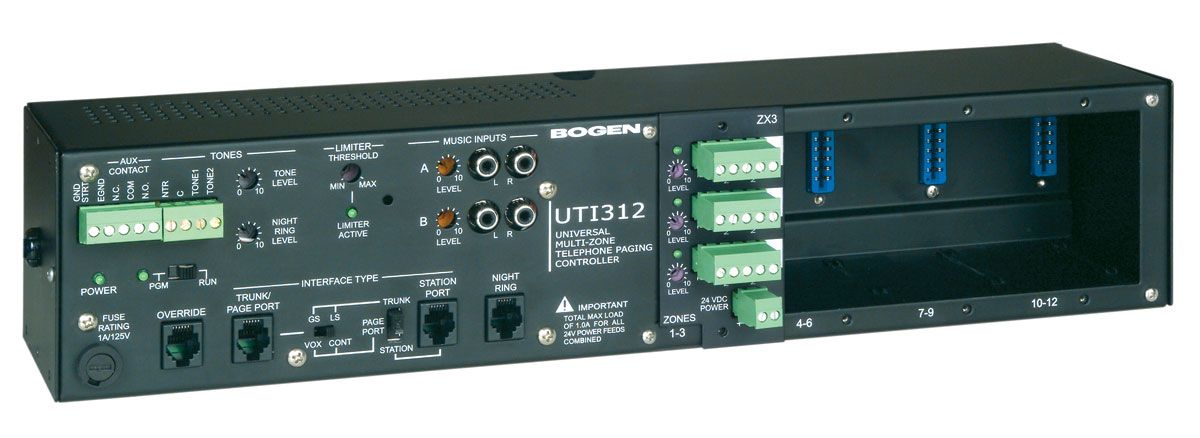

Bogen UTI312 Paging Controller with Paging Module |  The Bogen UTI312 Zone Paging ContRoller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers. The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to
12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select,
override, night ring, two tone triggers, and code calling zone groups. The UTI312 also offers flexible dialing
Bogen UTI312 Features
- Expandable from 3 up to 12 zones using ZX3 modules
- Up to 24 programmable paging zone groups
- Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
- Simple 2-switch interface setup
- Programmable activation of AUX contacts
- C-form contact per zone
- 24V DC, 1A internal power supply
- Provides audio drive for up to 150 one-way self-amplified speakers per zone
- Adjustable output limiter with threshold control and active indicator
- Two background music busses, selectable per zone
- Two high-impedance transformer isolated background music inputs
- Stereo combining inputs for background music busses
- All-Call paging zone group
- Auto Select paging zone group
- Override paging (using loop start trunk or page port contact closure activation) with zone group
- Night Ringer (90V and contact closure activation) with zone group
- Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
- Select tone burst, chime, double chime, or slow whoop
- Code Calling with zone group
- 2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
- Non-volatile memory for setup data (no backup battery required)
- Pre-Announce Tone
- Confirmation Tone
- Setup Tone to assist in volume setting
- Pluggable terminal strips
- Microcontroller-based operation
- DTMF programming
- DTMF Block to help suppress DTMF tones over paging system
- Programmable timers control page duration (station and trunk)
- Wall- or Rack-mountable
Bogen ZX3 Features
- One ZX3 module pre-installed with UTI312
- 3 zones per module
- Audio output with level control per zone
- Zone contact closure
- Zone activity LEDs
- Pluggable terminal strips
|
 |
