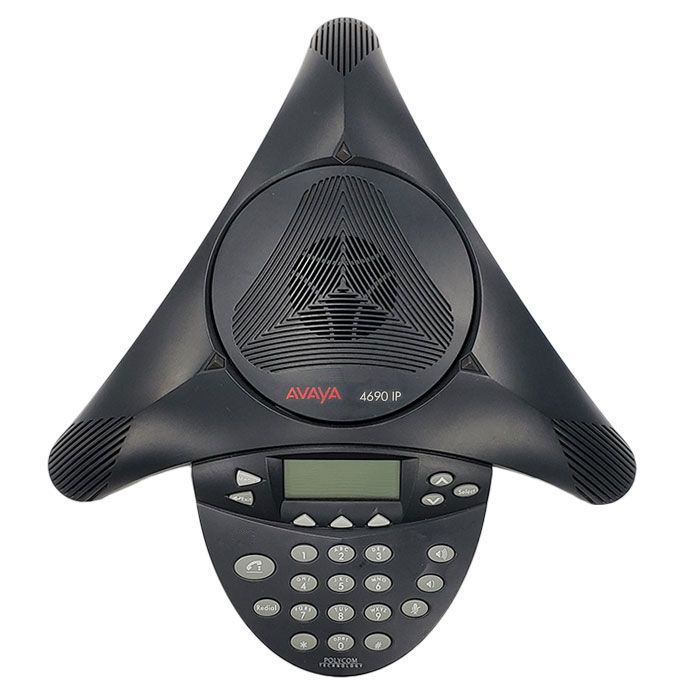

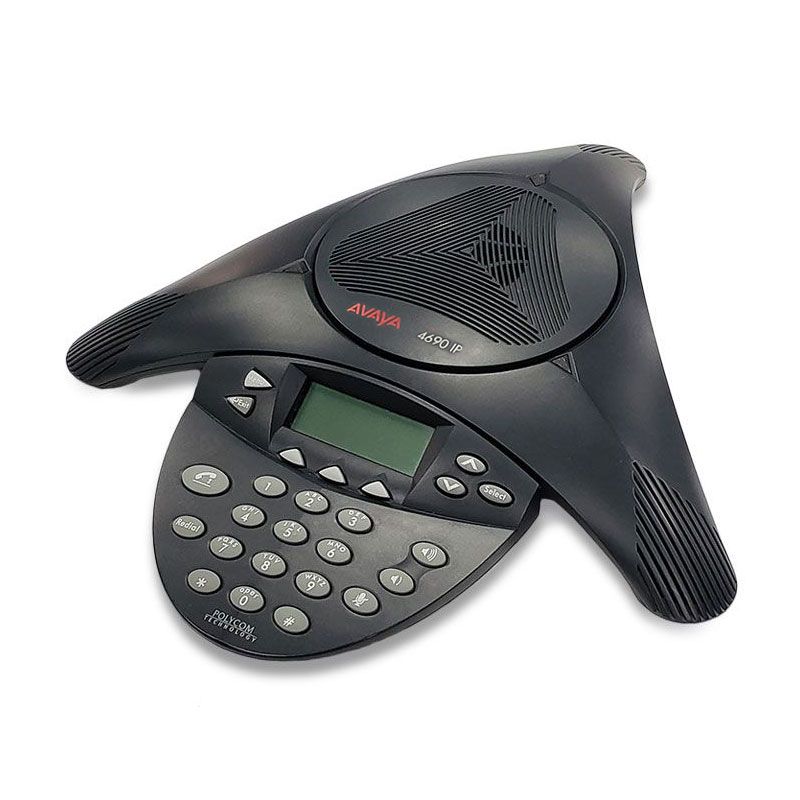

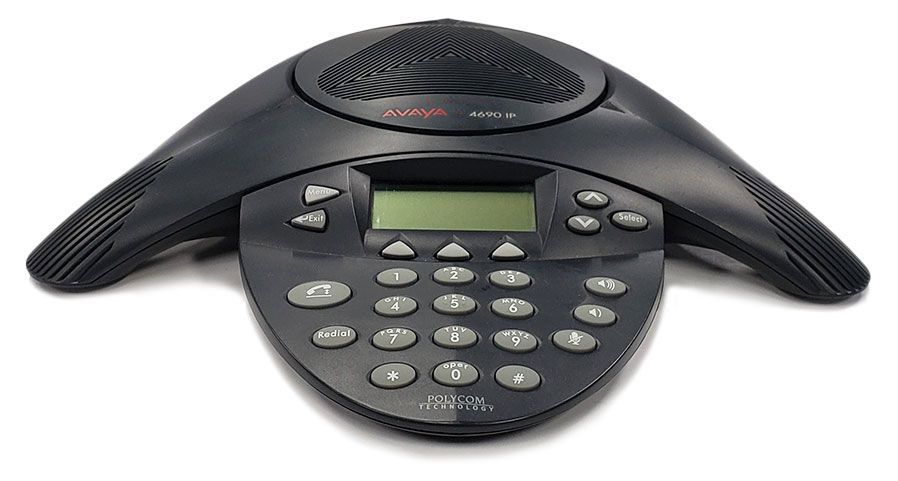

| The Avaya 4690 is an IP conference phone made for use with Avaya Communication Manager (Aura) systems. It connects directly to your IP network and provides a tabletop conferencing solution for small, mid-size, and even larger conference rooms. The Avaya 4690 features crystal clear sound quality, 360 degree microphone pickup, an informative display, and access to the extensive feature set of the Avaya Communication Manager. With the included optional expansion microphones, you'll have greater coverage on longer conference tables.
Avaya 4690 IP Features
- Full Duplex Speakerphone with 360 degree microphone pickup
- Room Coverage: Up to 20 x 20 ft (w/o extension microphones) - Up to 20 x 30 ft (w/ extension microphones)
- 3 Soft Keys to give access to common telephony features
- 5 Fixed Feature & Navigation Keys: On/Off Hook, Redial, Mute and Volume Up & Down
- 5 Menu and Navigation keys, 5 Personalized Ring Patterns
- 12 key telephone Keypad
- Graphical display (248 x 68 pixels)
- Single 10/100 Base T Ethernet connection - Full Duplex Ethernet connectivity with Auto-negotiation
- G.711, G.729A Voice Codecs
- DHCP client and Statically (Manual) Configurable IP Addressing
- Downloadable Software for future upgrade capability
- Includes expansion microphones for larger conference tables/rooms (Refurbished microphones may have Avaya, Polycom, Cisco, or Nortel logo)
Compatibility
- The Avaya 4690 IP Speakerphone is compatible with Avaya Communication Manager.
- It requires the following circuit packs: TN799C C-LAN or higher, TN2302AP IP Media Processor
- Not compatible with IP Office PBX

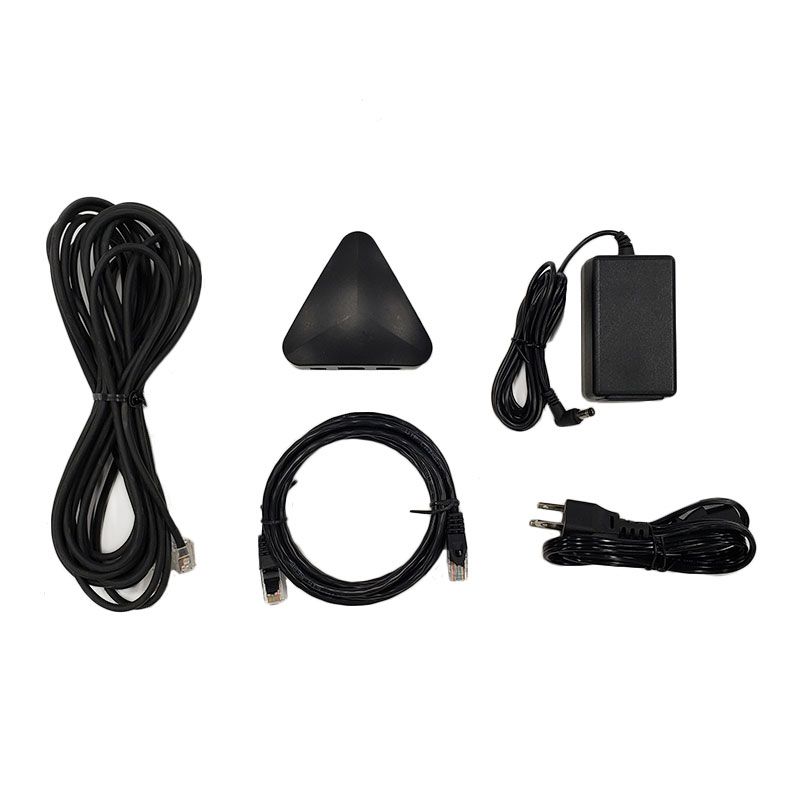

Includes
- Avaya 4690 conference phone

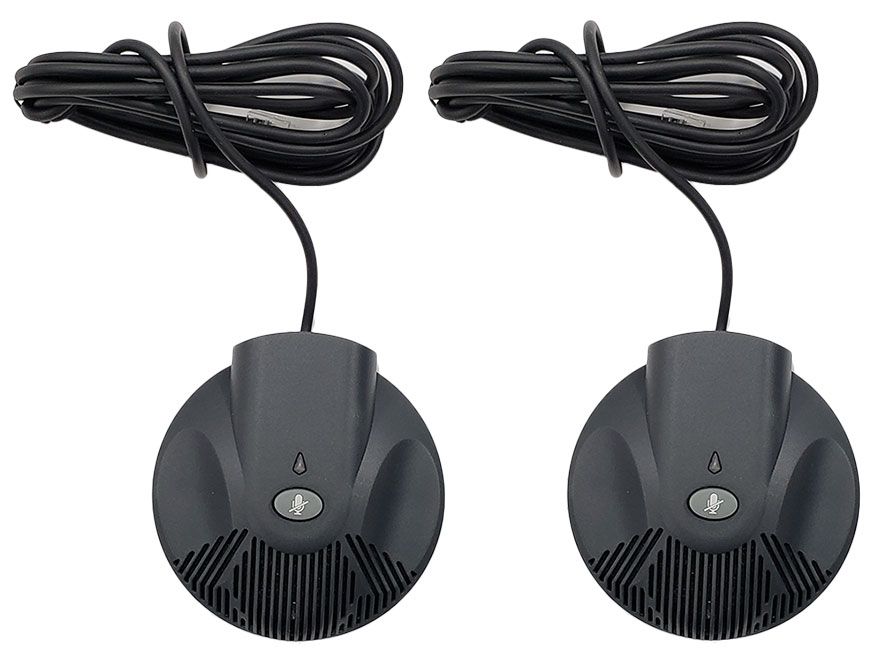

- Pair of Avaya 4690 expansion microphones

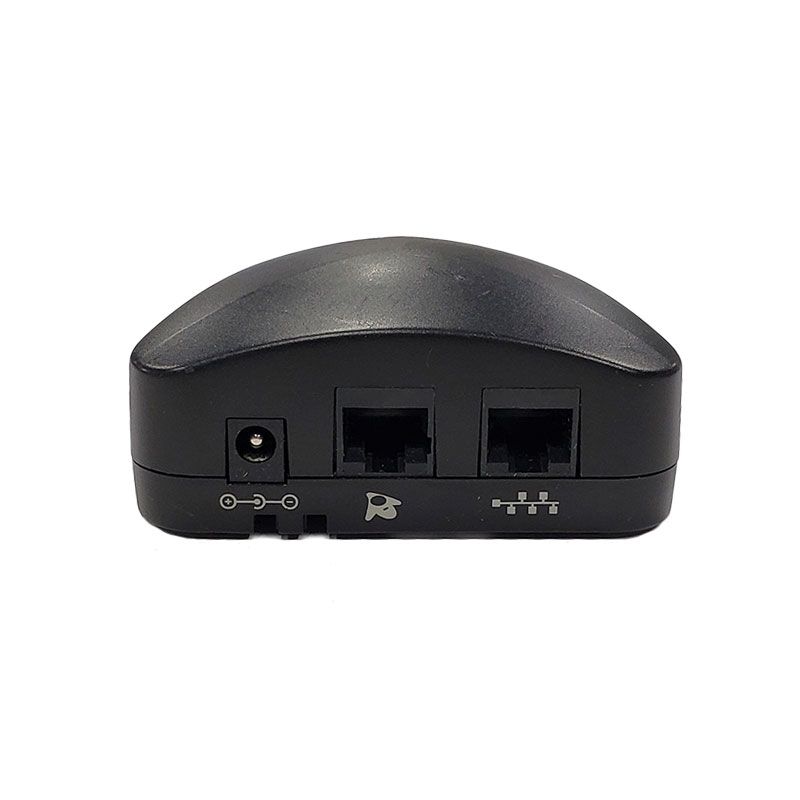

- Data power module
- Power supply
- Power cord
- Network cable
- Console cable
