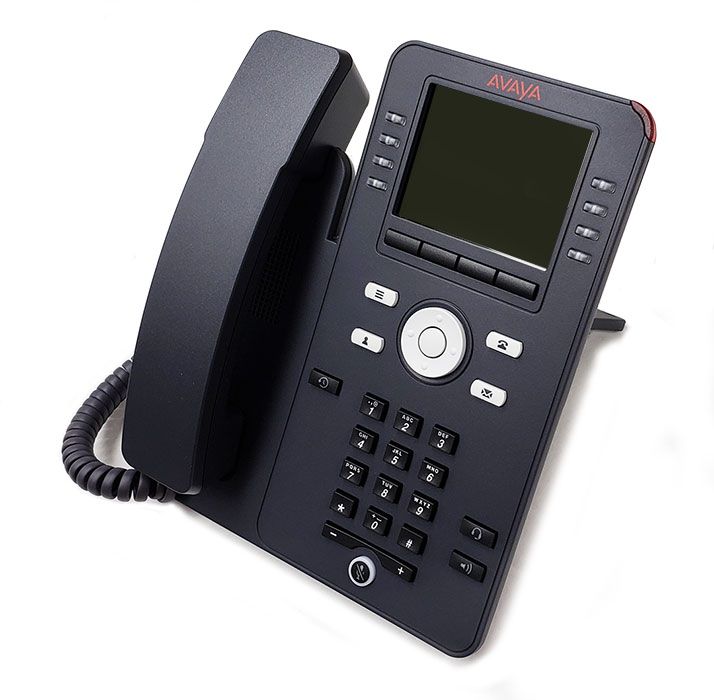

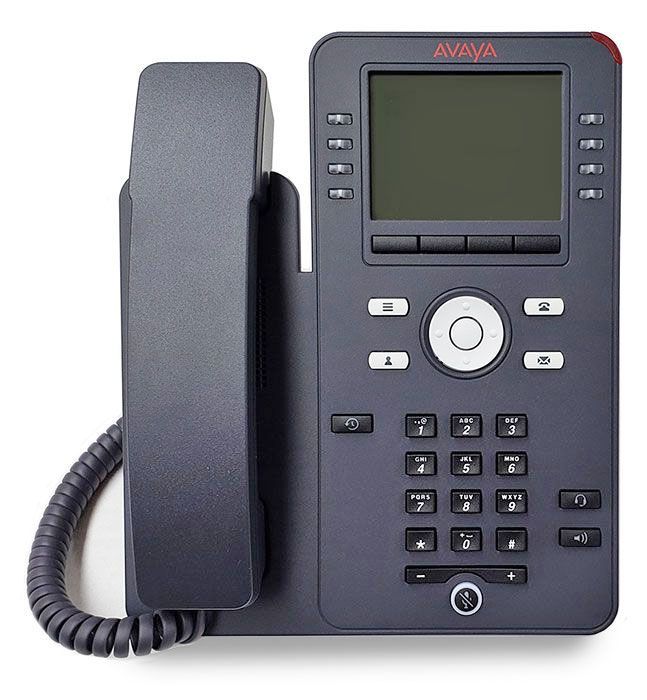

| The Avaya J169 IP Phone is a mid-level VoIP phone built for cubicles, offices, and any worker who needs extended phone performance. Tightly integrated with the Avaya Aura and IP Office platforms, it leverages your enterprise IP network to deliver sophisticated voice communications from headquarters, remote locations, or home offices.
Avaya J169 Features
- 3.5” (diagonal) grayscale display - 320 x 240 pixels
- Multi-line IP phone
- 8 line-feature keys with dual LEDs (red/green)
- 4 context sensitive soft keys
- Supports SIP-AST for enhanced features and integration on Avaya Aura
- 24 programmable button slots for call appearance and feature buttons; 3 pages of 8 (Dual Column Mode) or 6 pages of 4 (Single Column Mode)
- Supports “CCMS over SIP” for enhanced features and integration on IP Office
- Supports H.323 software for integration with Avaya Communication Manager and Avaya IP Office
- Wideband audio in handset and headset
- Integrated RJ9 headset port with Electronic Hook Switch (EHS)
- Built in volume boost control in handset for hearing impaired
- Mute key with mute alerting
- Dual 10/100/1000 Gigabit Ethernet ports to support co-located PC
- Supports up to three JBM24 Button Modules which can all be powered by PoE or PoE injector
- Supports up to three JEM24 Expansion Modules - Up to two JEM24 Expansion Modules can be powered by PoE or PoE injector; external 5V power supply (see accessory below) is required if adding more than two JEM24
- Power over Ethernet Class 1 (class 2 with JBM24/JEM24) and support for 802.3az
- Powered via Power over Ethernet (PoE), optional PoE injector, or optional 5V power supply (sold separately; see drop down option above)
Compatibility
- Avaya Aura Platform 6.3 FP4
- Avaya IP Office 11.0
- Broadsoft Broadworks R21SP1
|
