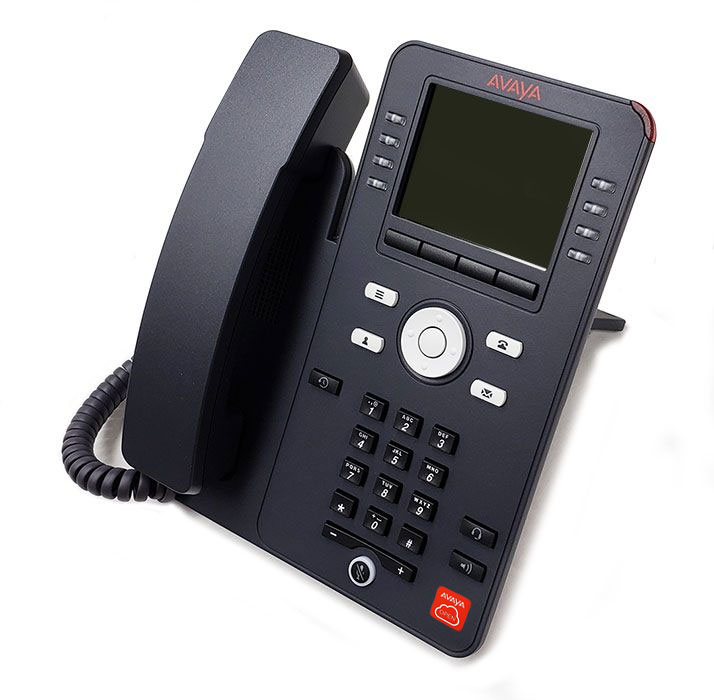

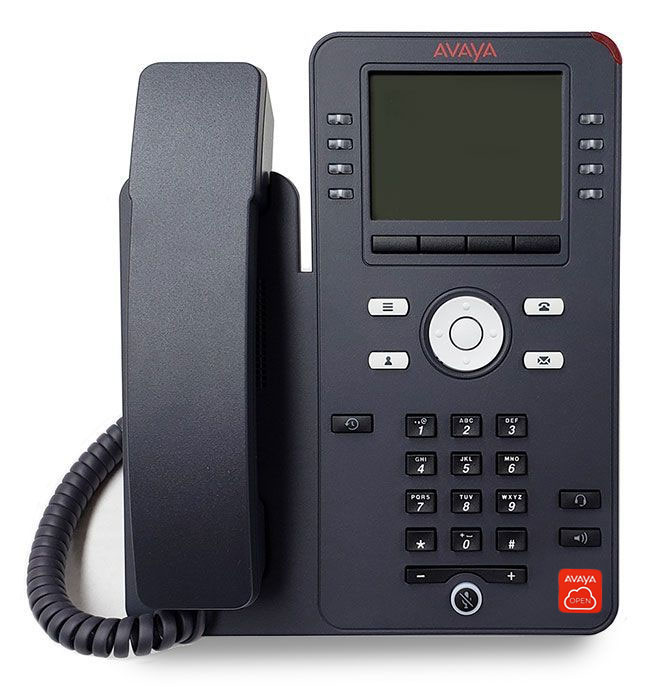

| Avaya J169 is a mid-level VoIP phone built for cubicles, offices, and any worker who needs extended phone performance.
This model features third-party call control (3PCC) using the open SIP protocol, making it interoperable with a broad range of VoIP phone systems. It cannot be used with Avaya Aura or Avaya IP Office. Avaya J169 3PCC Features
- 3.5” (diagonal) grayscale display - 320 x 240 pixels
- Multi-line IP phone
- 8 line-feature keys with dual LEDs (red/green)
- 4 context sensitive soft keys
- 24 programmable button slots for call appearance and feature buttons; 3 pages of 8 (Dual Column Mode) or 6 pages of 4 (Single Column Mode)
- Wideband audio in handset and headset
- Integrated RJ9 headset port with Electronic Hook Switch (EHS)
- Built in volume boost control in handset for hearing impaired
- Mute key with mute alerting
- Dual 10/100/1000 Gigabit Ethernet ports to support co-located PC
- Supports up to three JBM24 Button Modules which can all be powered by PoE or PoE injector
- Supports up to three JEM24 Expansion Modules - Up to two JEM24 Expansion Modules can be powered by PoE or PoE injector; external 5V power supply (see accessory below) is required if adding more than two JEM24
- Power over Ethernet Class 1 (class 2 with JBM24/JEM24) and support for 802.3az
- Powered via Power over Ethernet (PoE), optional PoE injector, or optional 5V power supply (sold separately; see drop down option above)
Compatibility
- Avaya Cloud Office by RingCentral
- Broadsoft Broadworks R22.0
- Zang Office R1.0
- Asterisk R16
- 3CX R15.5
- FreeSWITCH 1.8.5
- Netsapiens 40
- 3PCC version (third party call control) made for Non-Avaya 3rd party SIP platforms
- Cannot be used with Avaya IP Office or Avaya Aura
|
