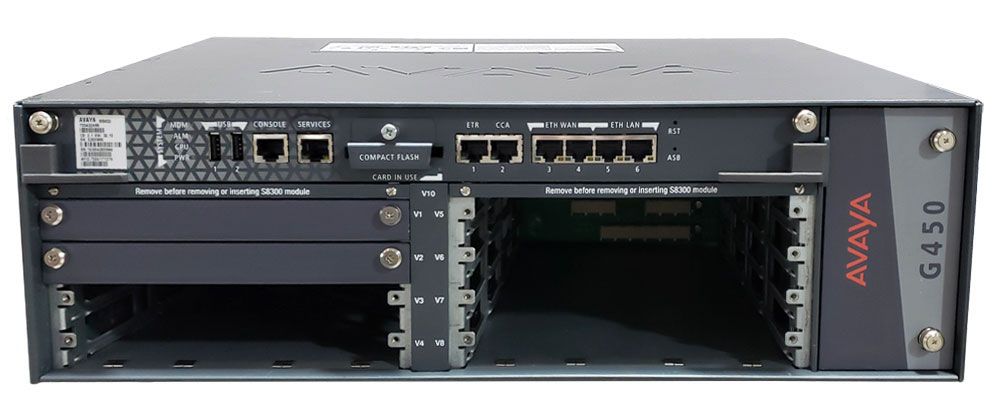

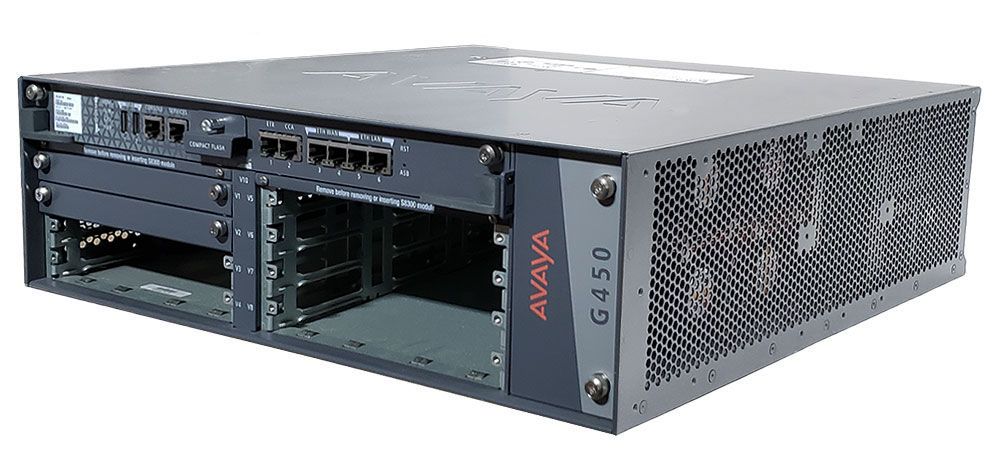

Avaya G450 MP160 Media Gateway w/Dual Power (700506956) | The Avaya G450 Media Gateway is a multipurpose media gateway that can be deployed in medium to large sized branch locations. It works in conjunction with Avaya Communication Manager IP telephony software running on Avaya S87XX Servers to help deliver intelligent communications to enterprises of all sizes.
Avaya G450 w/MP160 Features
- Provides 8 media module slots
- Equipped with single DSP childboard supporting 160 VoIP channels (MP160)
- Can add up to 3 additional DSP childboards for a maximum of 240 VoIP channels
- Includes two power supply units, main and redundant
- Can support up to 450 users when deployed as a branch gateway in a mid to large branch office
- Can serve up to 2400 users when deployed as a campus gateway
- Features a VoIP engine, an optional WAN router, and Ethernet LAN connectivity
- Provides full support for Avaya IP and digital telephones, as well as analog devices such as modems, fax machines, and telephones
Media Module Compatibility
- The Avaya G450 Media Gateway is compatible with S8300 CM Server and MM710, MM711, MM712, MM714, MM716, MM717, MM720, MM722, MM340, and MM342 Media Modules
Includes
- Avaya G450 Media Gateway w/2 media module blank plates

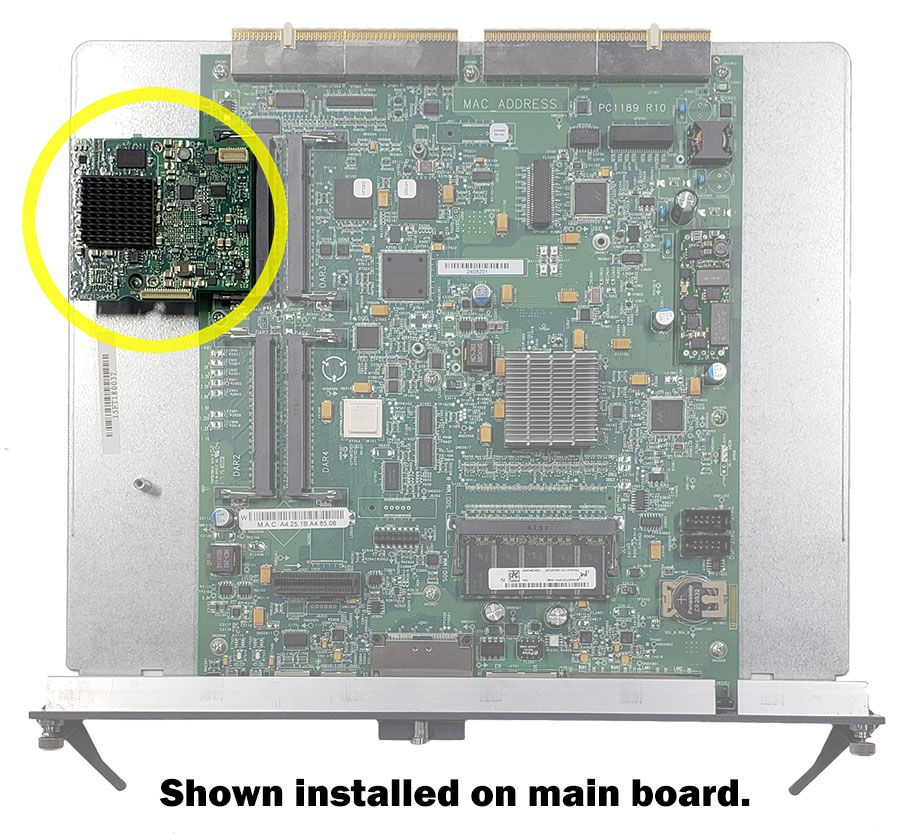

- (1) MP160 DSP daughterboard installed on main board

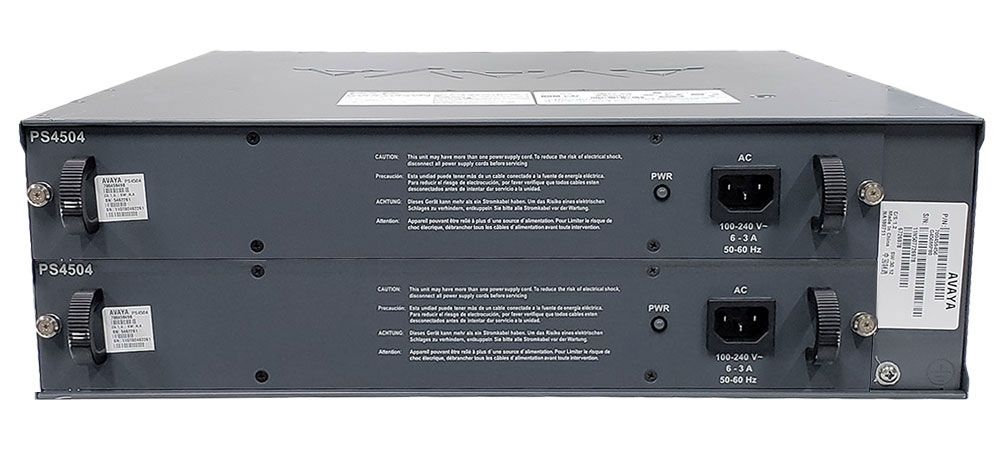

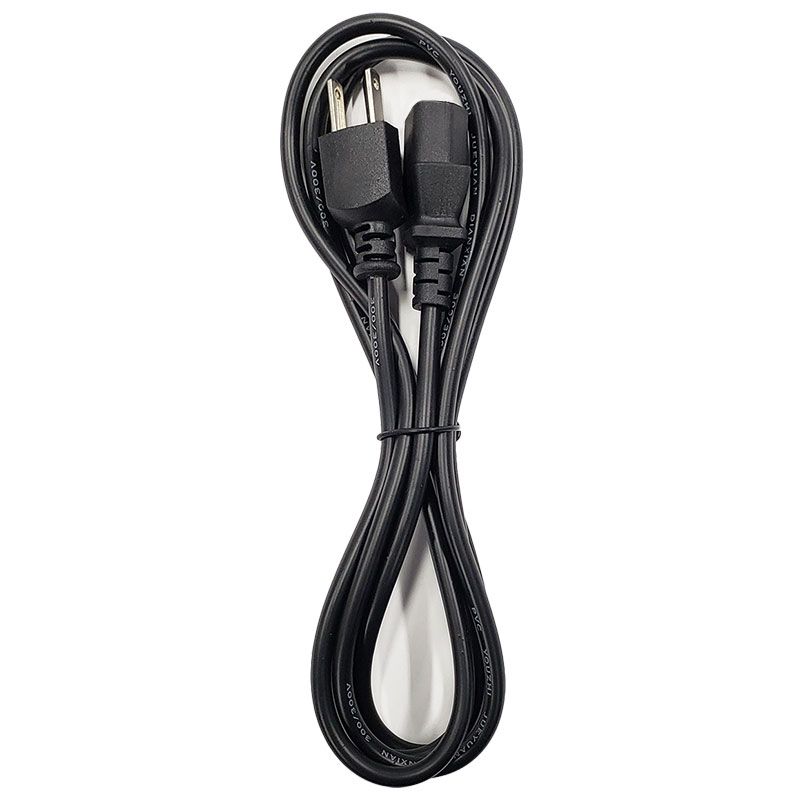

- (2) G450 power supply with power cord
|
