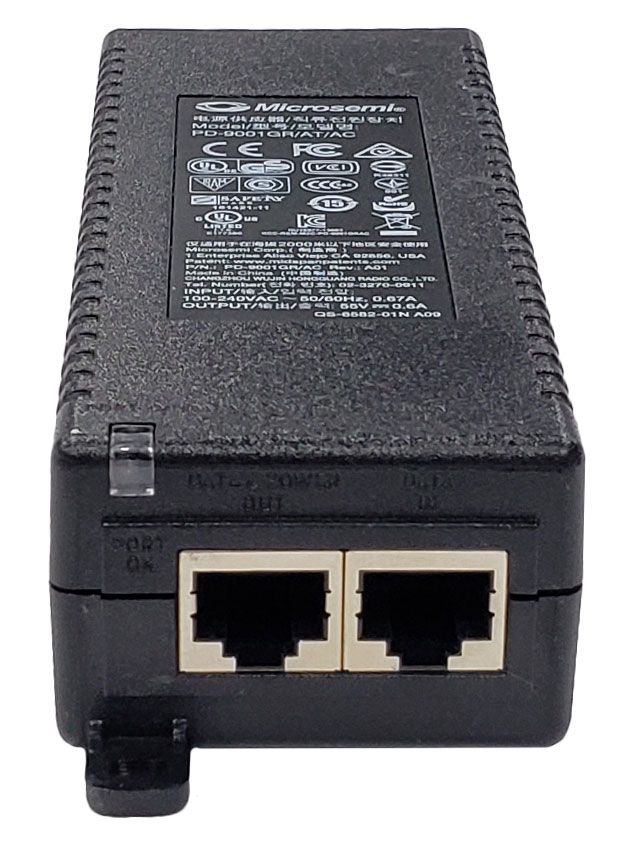

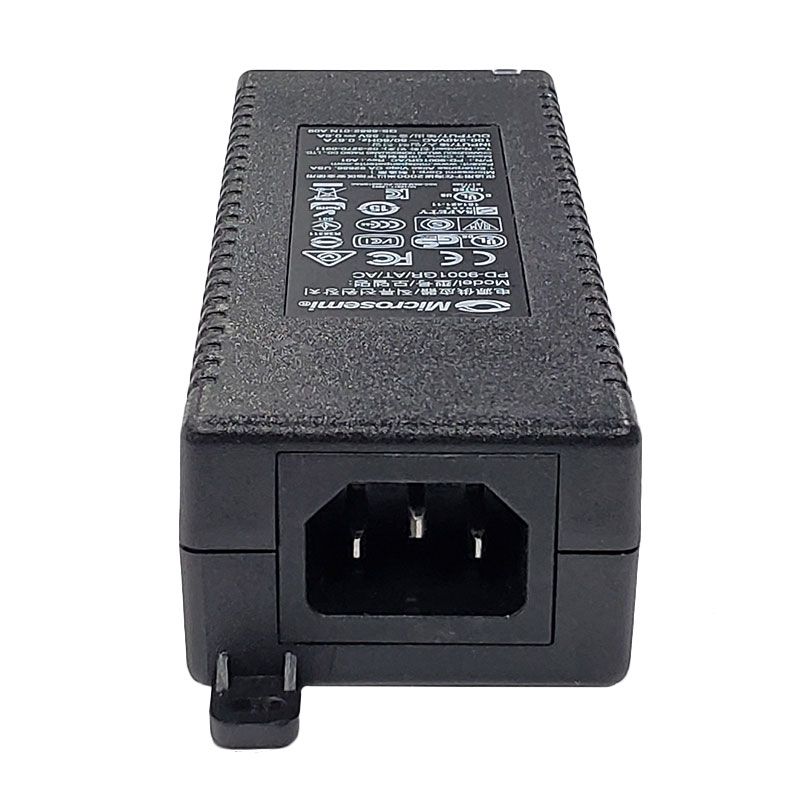

The Microsemi PowerDsine PD-9001GR is a single port, high-power PoE injector for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11ac Access Points, pan-tiltzoom (PTZ) cameras, and IP and video-phones.
PowerDsine PD-9001GR Features
- Single-port Gigabit PoE injector
- 30 W (PoE+)
- Pass through data rate - 10/100/1000 Mbps
- 802.3at compliant with 2-event classification
- Backwards compatible with IEEE802.3af
- 30W output power from -20ºC to +40ºC, 25W output at +55ºC
- 1000Base-T compatible
- Safe & reliable power over existing Ethernet infrastructure, only PoE devices receive power
- Automatic detection and protection of non-standard devices
- Plug-and-play installation
- Guaranteed up-time
Compatibility
- Compatible with any IP telephone or IP endpoint device that is compatible with 802.3af Power over Ethernet (PoE, 15.4W) or 802.3at (PoE+, 30W)
